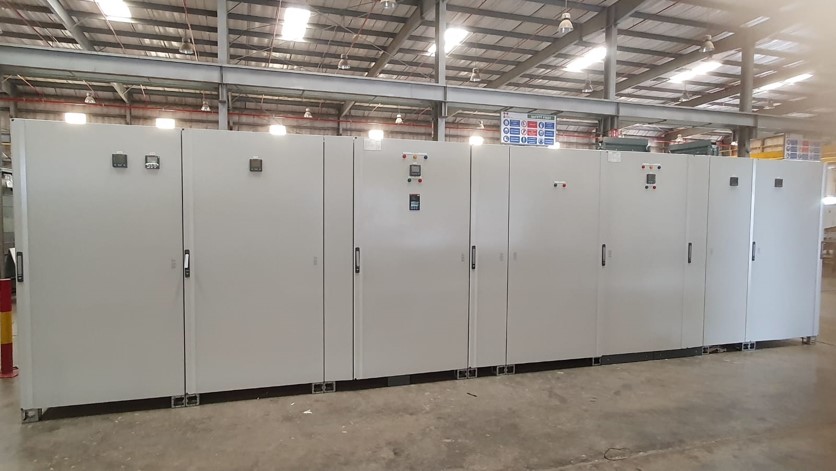

Main Distribution Board

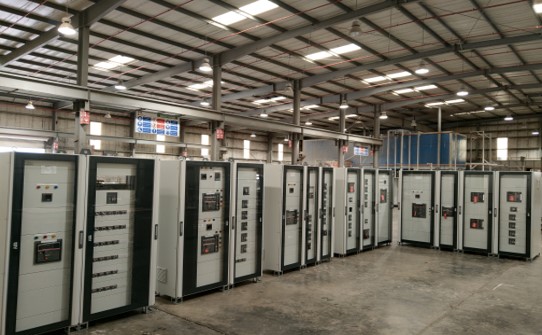

Main Distribution Board - Image 2

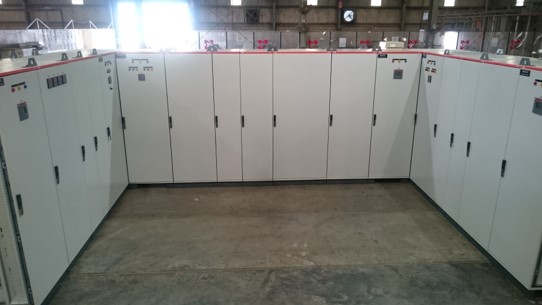

Main Distribution Board - Image 3
Main Distribution Board - Image 4

Main Distribution Board

Main distribution boards are the heart of any electrical system in large mega projects such as residential towers, hospitals, and hotels. They receive power from the main supply source and distribute it safely and efficiently to sub-boards and various loads within the facility.

At Multi-Electrical Industries Company, we design and manufacture and assemble main distribution boards according to quality and safety standards approved by the IEC and the Saudi Standards, Metrology and Quality Organization (SASO), using reliable components from leading international brands.



Category:

Standard Specifications:

1. Rated Current: Up to 6300 A.
2. Rated Voltage: Up to 1000 V AC, three-phase, 50/60 Hz.
3. Insulation Class: Up to 1000 V AC.
4. Short-Circuit Withstand (Icw): Up to 120 kA/1 sec (as per project requirements).
5. Protection Class (IP Rating): IP30 to IP65.
6. Insulation Class Rating: Form 2b to Form 4b, as per protection, isolation, and maintenance requirements.
7. Designed to operate at temperatures up to 50°C.
8. Tinned or silver-plated copper busbars with a current capacity suitable for the rated load and short-circuit current.
9. Manufactured in accordance with IEC 61439 (1 & 2) standards.
10 . Type-tested switchgear solutions are available.
